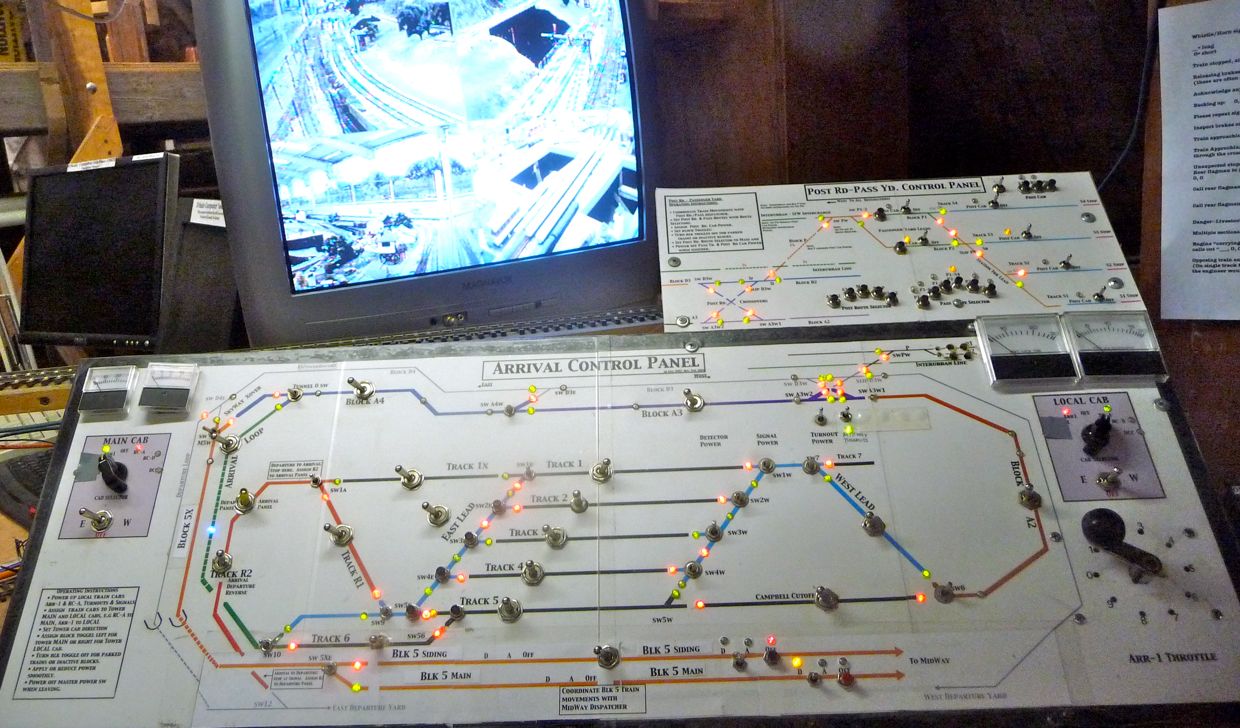

Arrival Panel with 4 channel monitor for Passenger yard |
Arrival Yard Main Cab Route set for blk
Arrival Loop, A3,A2,West Lead, Track 3.
Local Cab set for Track 1, Track 1X, Track R2.
Note: blue detector light for train in Arrival
Loop.
Also, Skyway crossover set for block D3 to block
5X. Blocks 5x,5Main set to use Departure power.
Main Cab using power Arr-1; Local Cab using power
RC-A.
Blk 5 Main set for Departure. Turnout 5Xe routes power from 5 Siding or 5 Main to block 5X. There is no on-off power switch for 5X, so trains must run thru to A4,D4 or 5 Siding or Main,
